D200S
CUMU
24 Months
Worldwide by sea or by express
One million lifespan
3~15 Days In stock
110V-250V

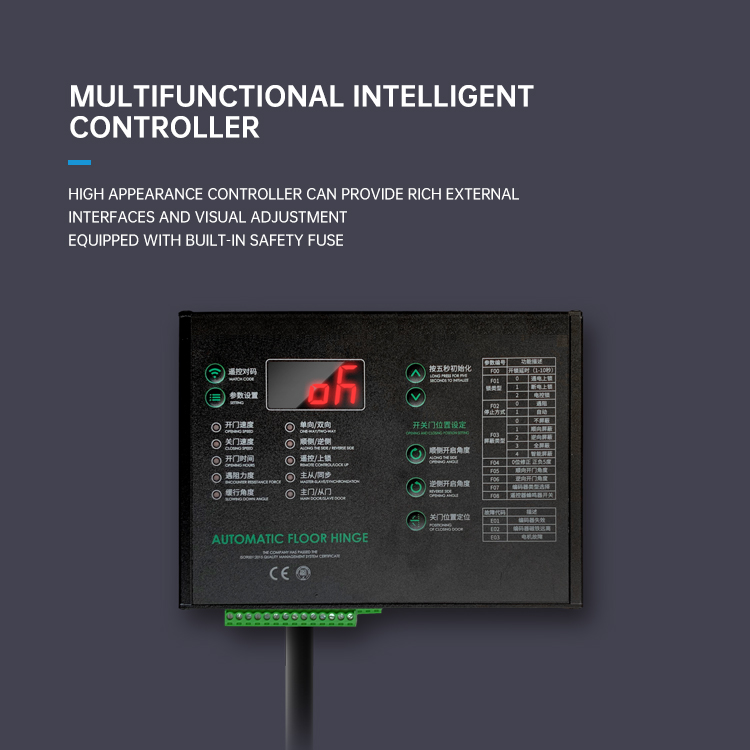

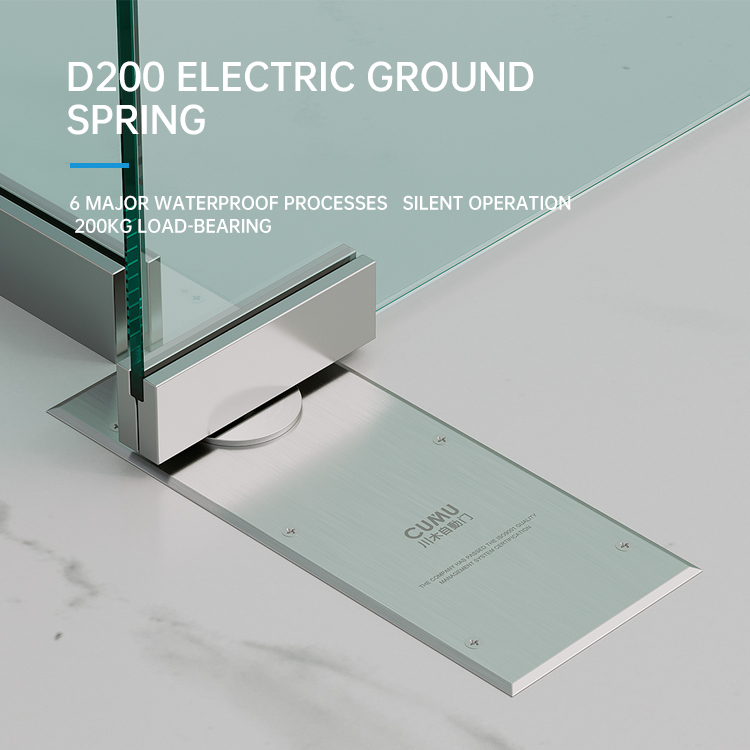

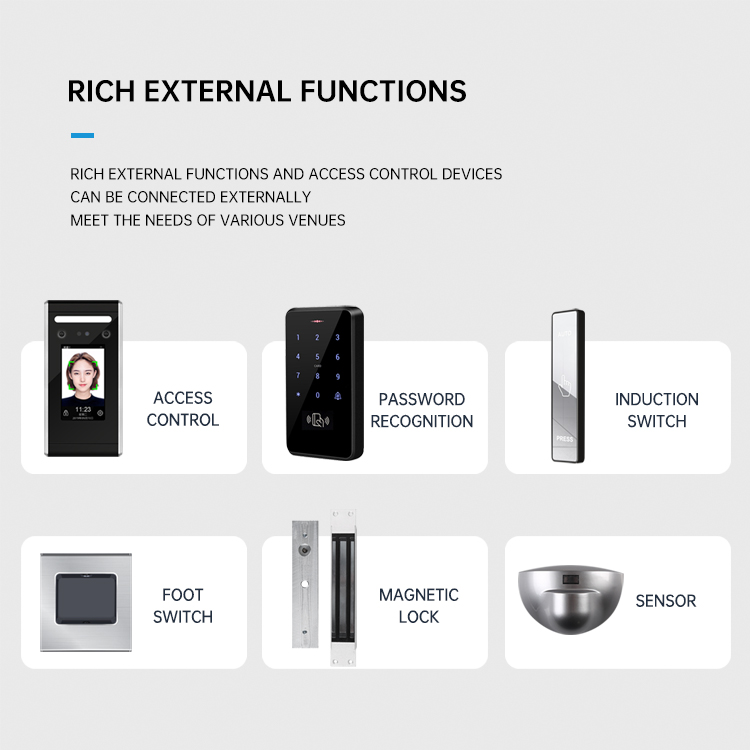

The floor spring is an in-ground automatic swing door opener/closer. The components are concealed under the threshold. The floor spring provides an ideal way to automate doorways. The controller has various functional ports for microwave sensors, electric lock, and other accessories. The brushless DC motor is sealed and it’s waterproof, fireproof, and highly resistant to deformation and corrosion.
Brushless DC Motor.Small size, strong power.
High load capacity. Door weights up to 180kg per leaf.
The Max. load is 180KG. D180S unit can be opened 90 degrees or 180 degrees, it’s optional. (It can automatically sense the passing direction of pedestrians, and open the door with the direction).

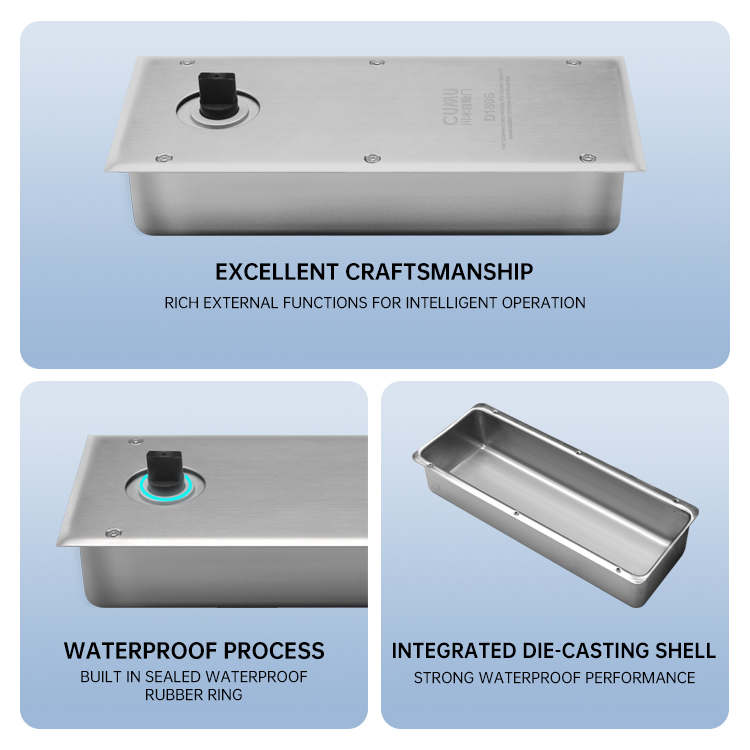

Integrated molding box. Thickened stainless steel panel. Anti-rust, anti-corrosion, not easy to be deformed.
Turbine rod, Helical gear rotation
Detachable screws, for easier maintenance.
Fine workmanship manufacturing, safe and strong, high‑quality stainless steel material, not easy to leaks oil, not easy to corrode, durable and long life.
The floor spring is a door closer device, which is installed together with the bottom of the door leaf to let the door close automatically.
Central suspension, double‑acting, limit device 2 speed control valve. opening and closing, suitable for use in different environments.
The device has multiple safety protections, effectively preventing damage caused by fire, electric shock, etc. Suitable for glass doors and framed doors.

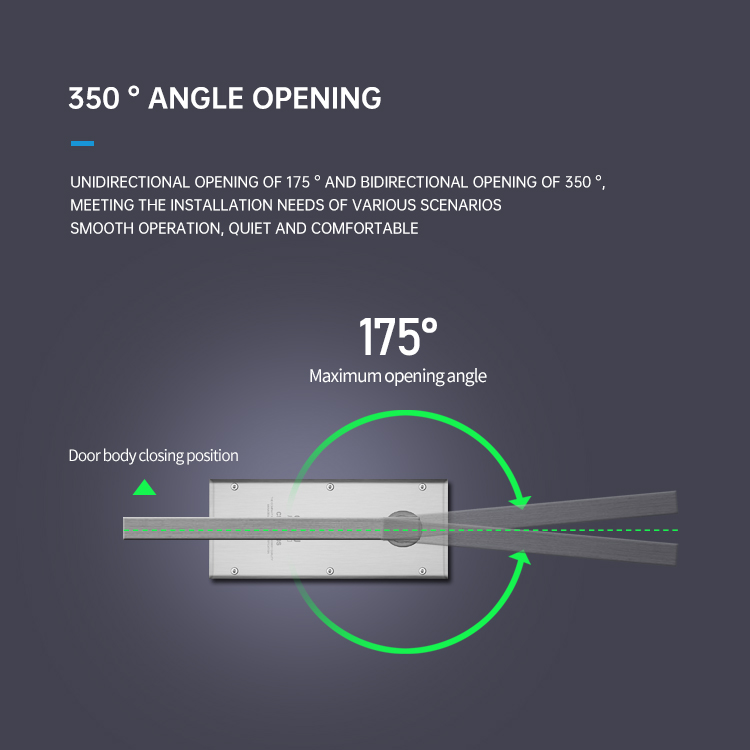

Positioning at 90 degrees, opening in both directions at the center, with a maximum opening angle of 86 ° -95°. Can withstand door weight of 180KG.

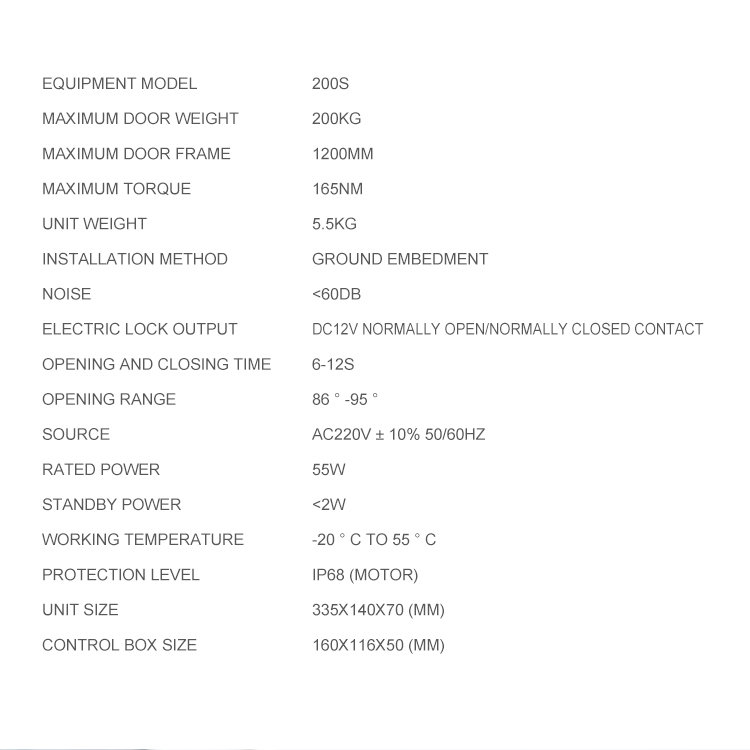

| Device model | D200S |
| Maximum door weight | 180kg |
| Maximum door frame | 1200mm |
| Maximum torque | 165Nm |
| Unit weight | 5.5kg |
| Installation method | Buried in the ground |
| noise | <60dB |
| Electric lock output | DC12V normally open/normally closed contact |
| opening and closing time | 6-12S |
| Open range | 86-95° |
| power supply | AC 220V±10%50/60Hz |
| rated power | 55W |
| Standby power | <2W |
| Operating temperature | -20°C to 55°C |
| Protection level | IP68(motor) |

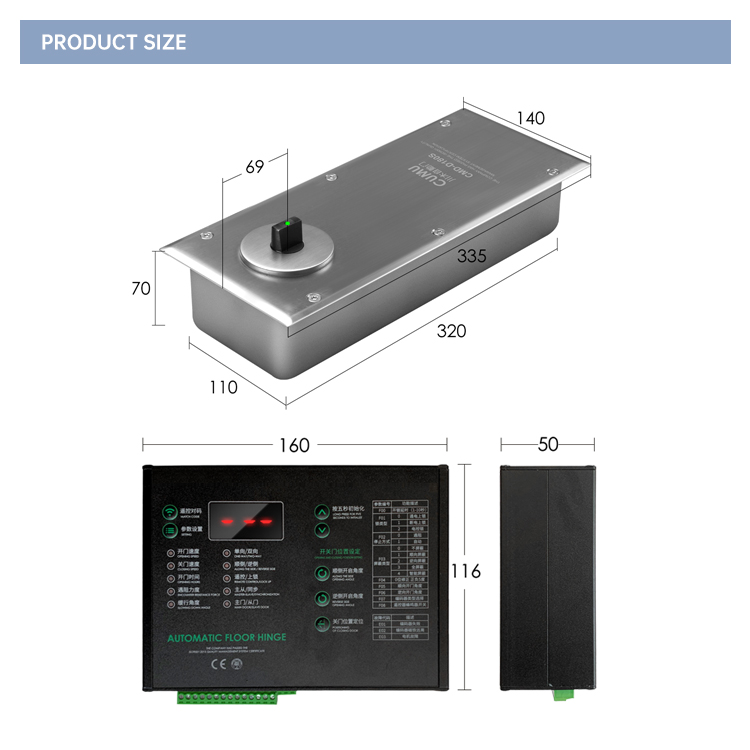

| Unit size | 335X140X70(mm) |
| Control box size | 160X116X50(MM) |
The floor spring door opener is an automatic door control device that uses the elastic force of the floor spring to open and close the door.
Floor spring door openers are mainly used to facilitate people's entry and exit, improve the efficiency of door use, and reduce manual operations.
Floor spring door openers are suitable for various buildings and places, such as shopping malls, office buildings, hospitals, schools, hotels, etc., especially those that require frequent access.
Floor spring door openers have the advantages of automation, energy saving, safety, and convenience, and can improve door efficiency and user experience.
The disadvantages of floor spring door openers are that installation and adjustment are complicated and maintenance costs are high.
The installation of floor spring door openers needs to consider the weight, size and usage requirements of the door, and install it in accordance with relevant standards and specifications.
The maintenance of floor spring door openers mainly includes regular inspection, cleaning and lubrication, and timely repair and replacement of damaged parts.
The service life of a floor spring door opener depends on factors such as the use environment, frequency of use, quality and other factors. It can generally be used for more than 5 years.
The price of floor spring door openers varies depending on the brand, specifications and functions, and generally ranges from a few thousand to tens of thousands of yuan.
In addition to opening and closing ordinary doors, floor spring door openers can also be used to control different types of doors such as fire doors, automatic sensor doors, and glass doors.
CUMU Automatic Door was established in Shanghai in 2006, and its production plant is located inChangzhou,Jiangsu,China.
Mainly engaged in the research, development, manufacturing and installation of Automatic door.including Automatic door operator, Automatic door opener, access control system, etc.Ourproducts have passed ISO-9001, CE and FCC international certifications.
After years of unremitting efforts, our company has now become a high-tech enterprise specializing in product development, production and sales of Automatic door machines and accessories.
For more than ten years since its establishment, our company's products have been sold to over.seas markets. The products are widely used in shopping malls, office buildings, banks, hotels.hospitals, factories and other places. The Automatic door series products designed and producedby our company have successfully replaced a number of fully imported products with excellentproduct quality, greatly reducing costs for users, and winning the recognition and favor of custom-ers at home and abroad with professional after-sales services.We also offer effective OEM&ODM service.
Our company will make greater efforts to contribute our due strength to the cause of our nation!
