CMD-280BT
CUMU
24 Months
Worldwide by sea or by express
One million lifespan
3~15 Days In stock
Single door≤1X300KG, Double door≤2X250KG
280KG
Heavy-duty automatic sliding door opener is a device used to control and drive the movement of heavy-duty automatic sliding doors. It usually consists of motor, reducer, controller, sensor, etc.

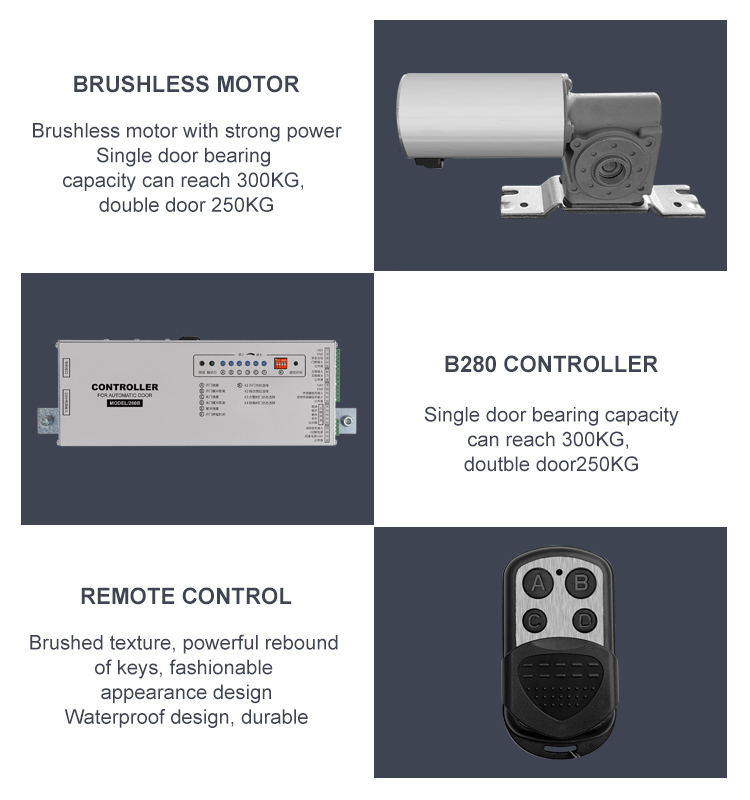

1.Powerful driving capability: The heavy-duty automatic sliding door opener can withstand a large door weight and is suitable for opening and closing large doors.
2.Smooth operation: The reducer and controller of the hoist can ensure the smooth operation of the door body and avoid impact and vibration of the door body during the opening and closing process.
3.Multiple control methods: The hoist can be controlled through buttons, remote controls, sensors and other methods to facilitate user use and operation.
4.Safe and reliable: The opener is equipped with a safety sensor, which can detect obstacles around the door in time to avoid door collision and pinching accidents.
5.Strong durability: The hoist is made of high-quality materials, has strong durability and corrosion resistance, and can operate stably for a long time in harsh environments.

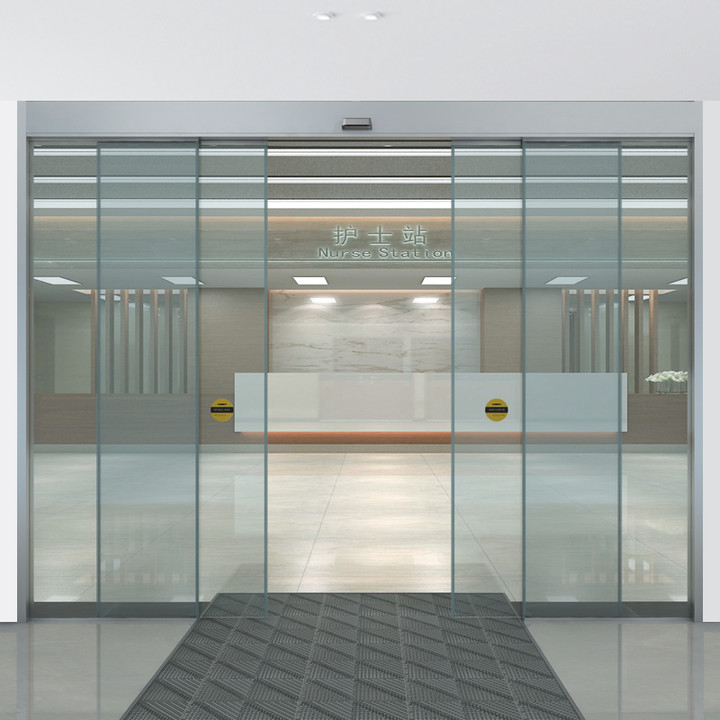

Heavy-duty automatic sliding door openers are widely used in commercial buildings, industrial plants, logistics and warehousing and other places. They can improve the efficiency and convenience of the door body and increase safety and comfort.

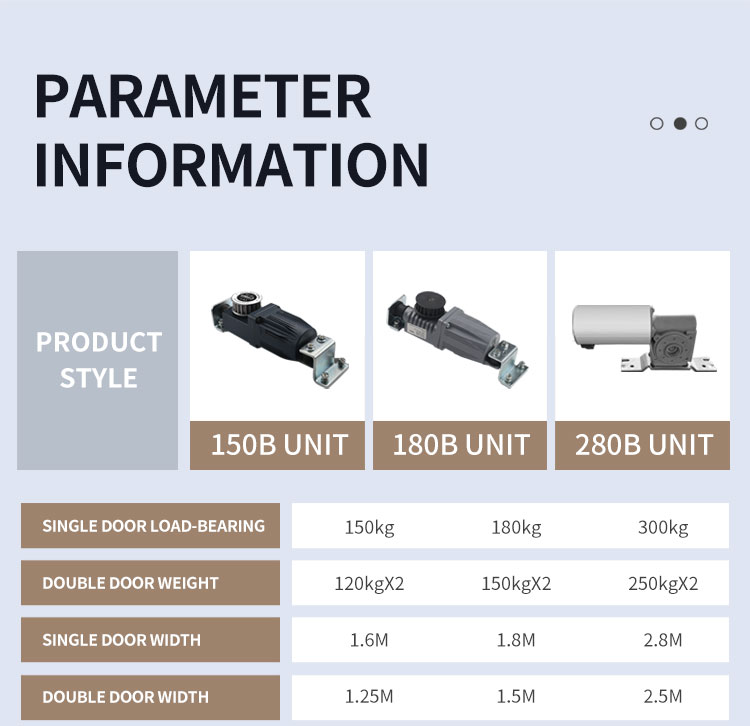

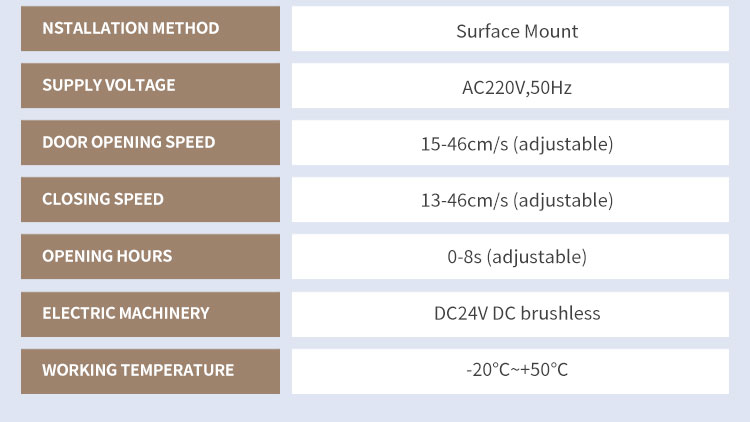

| Model | CMD-150BT | CMD-180BT | CMD-280BT |
| Suitable For Door Weight | ≤1X150KG / ≤2X125KG | ≤1X180KG / ≤2X150KG | ≤1X300KG / ≤2X250KG |
| Suitable For Door Width | 750-1600MM | 750-1900MM | 1000-2800MM |
| Door Opening Speed | 150-460MM/S (ADJUSTABLE) | 150-460MM/S (ADJUSTABLE) | 200-460MM/S (ADJUSTABLE) |
| Closing Speed | 130-460MM/S (ADJUSTABLE) | 130-460MM/S (ADJUSTABLE) | 200-460MM/S (ADJUSTABLE) |
| Supply Voltage | 110V-250V | ||
| Power Consumption | ＜75W | ＜100W | ＜100W |
| Weight | 9.5KG | 9.7KG | 12KG |
| Package Size | L670MM*W340MM*H150MM | L670MM*W340MM*H150MM | L650MM*W340MM*H170MM |
TROUBLESHOOTING MANUAL
| Reason | Inspection | |
| Door body don't move | Power is not on | Check the power cable, check the power switch |
| Foreign matters on the rail | Turn off the power, push the door by hand to see if the door moves smoothly | |
| Automatic protection | Check if there is any obstacle on the way | |
| Door is locked | Check if there is an external lock | |
| Door can't be fully opened | Half-open mode | Check if it's set to half-open modeDoor can't be closed./ Door operates abnormally |
| Door can't be closed./ Door operates abnormally | Sensor misoperation | Check for continuous moving items within the sensing range |
| Short-circuit of control signal line | Disconnect the signal line and see if it worked | |
| Microwave interference source around the door | Check the microwave interference source | |
| Continuous operation of the safe beam | Confirm whether the safe beams are covered by dirt | |
| Confirm whether the safe beams deviate from the right angle | ||
| Door runs not smoothly | High running resistance | Check if there are foreign matters on the rail |
| Check if there is an obstacle on the door body | ||
| Inappropriate speed for opening and closing | Check the speed adjustment |
CMD-280 Automatic Sliding Door Opener Installation manual.pdf
CUMU Automatic Door Catalog 2023.pdf
Click here to edit your content.
An automatic sliding door opener is a motorized device designed to facilitate the opening and closing of sliding doors without manual intervention. It operates using sensors and controls, providing convenience and accessibility in various settings.
An automatic sliding door opener operates by utilizing a motor and a drive system to move the door along a track. Sensors detect movement and trigger the opener to activate, enabling the door to open or close smoothly.
Using an automatic sliding door opener offers numerous benefits, including enhanced accessibility, improved convenience, energy efficiency, and a modern, professional appearance for commercial or residential spaces.
Yes, in most cases, an automatic sliding door opener can be retrofitted onto existing sliding doors. Professional installers can assess the door's structure and make necessary adjustments to accommodate the opener system.
Yes, automatic sliding door openers are designed with safety features such as motion sensors and obstruction detection systems. These features ensure that the doors stop or reverse their movement when encountering an obstacle, enhancing safety for users.
Absolutely. Automatic sliding door openers can be customized to suit specific requirements, including varying door sizes, weight capacities, speed adjustments, and integration with access control systems or smart home technology.
Regular maintenance is essential to ensure optimal performance of the automatic sliding door opener. This may include cleaning, lubrication, inspecting sensors, and addressing any mechanical issues promptly.
Yes, many automatic sliding door openers are designed to be energy-efficient. They often feature low-power consumption modes and energy-saving settings to minimize electricity usage while still maintaining smooth door operation.
Modern automatic sliding door openers are engineered to operate quietly, with minimal noise. The use of advanced technology and sound-dampening materials ensures a smooth and unobtrusive operation.
Yes, automatic sliding door openers are versatile and can be used in various settings, including commercial establishments, healthcare facilities, retail spaces, hotels, as well as residential properties. Their adaptability makes them a popular choice for both commercial and residential applications.
CUMU Automatic Door was established in Shanghai in 2006, and its production plant is located inChangzhou,Jiangsu,China.
Mainly engaged in the research, development, manufacturing and installation of Automatic door.including Automatic door operator, Automatic door opener, access control system, etc.Ourproducts have passed ISO-9001, CE and FCC international certifications.
After years of unremitting efforts, our company has now become a high-tech enterprise specializing in product development, production and sales of Automatic door machines and accessories.
For more than ten years since its establishment, our company's products have been sold to over.seas markets. The products are widely used in shopping malls, office buildings, banks, hotels.hospitals, factories and other places. The Automatic door series products designed and producedby our company have successfully replaced a number of fully imported products with excellentproduct quality, greatly reducing costs for users, and winning the recognition and favor of custom-ers at home and abroad with professional after-sales services.We also offer effective OEM&ODM service.
Our company will make greater efforts to contribute our due strength to the cause of our nation!
1. Design and planning: Design and plan the function, appearance and performance of the automatic sliding door operator according to customer needs and market demand.
2. Material procurement: Purchase required materials, including metal materials, electronic components, motors, sensors, etc.
3. Material preparation: Classify, inspect and prepare purchased materials to ensure that the quality and quantity of materials meet requirements.
4. Processing and manufacturing: Process and manufacture parts according to design drawings and process requirements. This includes metal processing, welding, spraying and other processes.
5. Assembly: Assemble and assemble the processed parts, including the installation and connection of motors, transmission devices, control circuits, sensors, etc.
6. Debugging and testing: Debugging and testing the assembled automatic sliding door operator to ensure its normal function and stable performance.
7. Quality inspection: Carry out quality inspection on automatic sliding door operators that have passed the debugging test, including appearance inspection, functional test, performance test, etc.

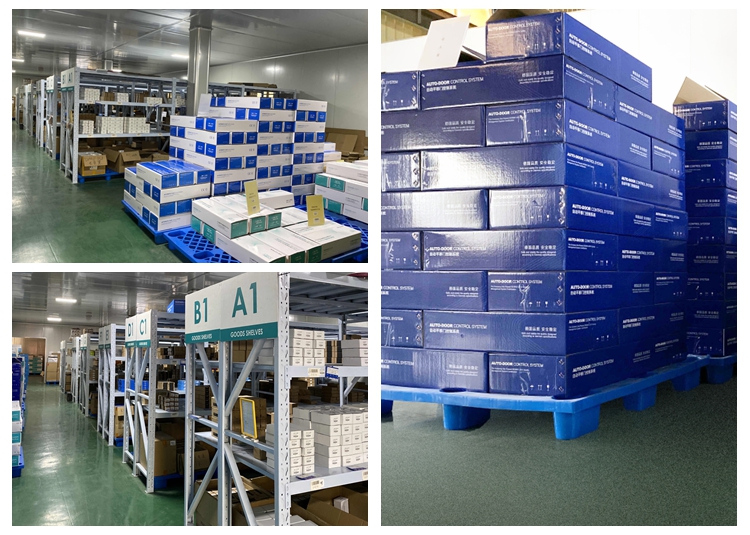

8. Packaging and delivery: Pack the automatic sliding door operator with qualified quality and arrange delivery.
9 After-sales service: Provide customers with after-sales services, including installation guidance, repair and maintenance, etc.
CE

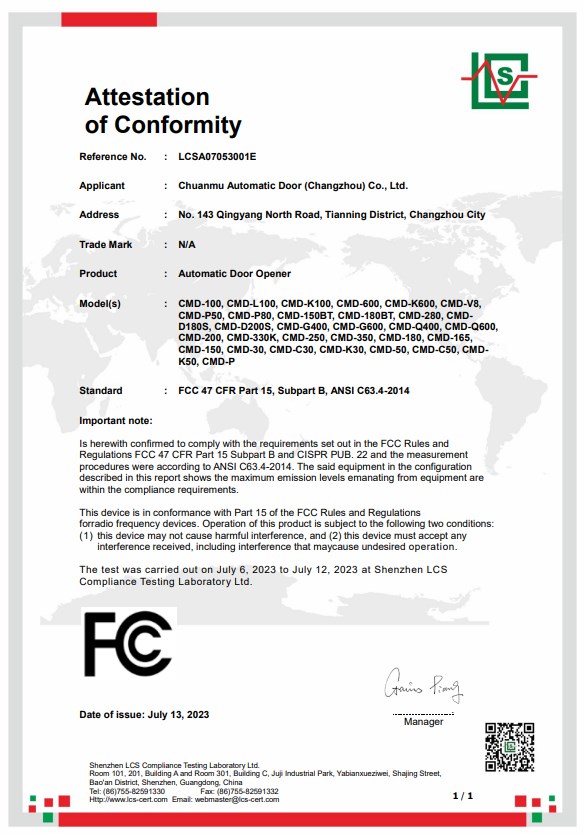

FCC
ISO 9001

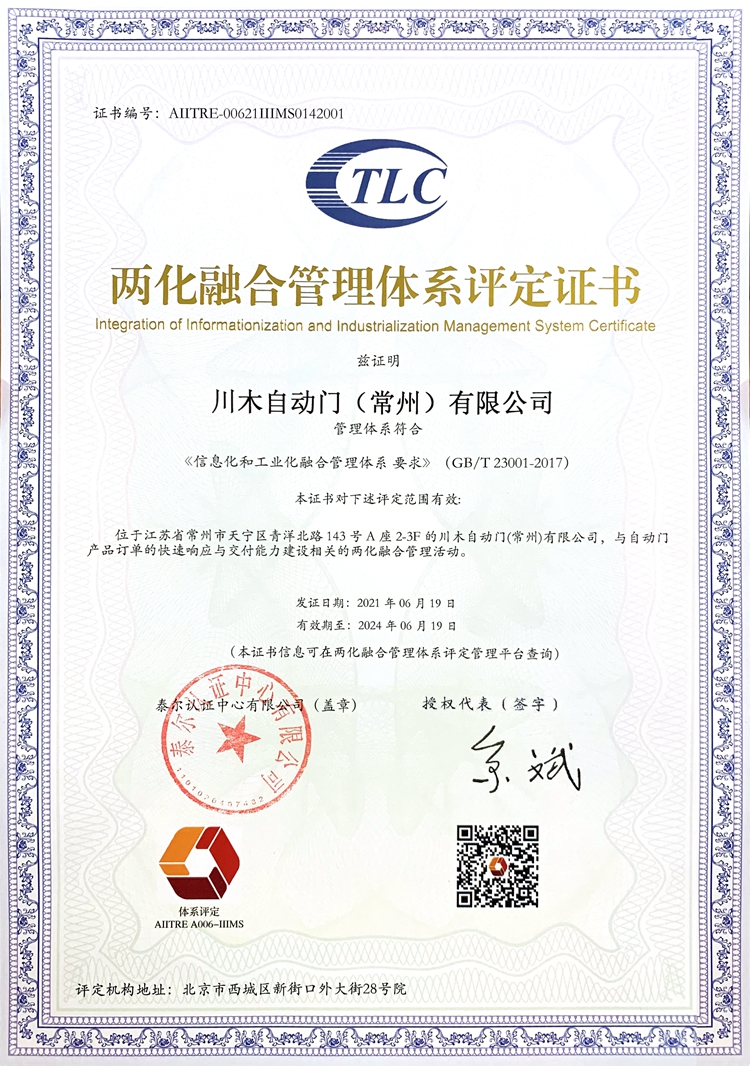

Management system
