204E
CUMU
24 Months
Worldwide by sea or by express
One million lifespan
3~15 Days In stock

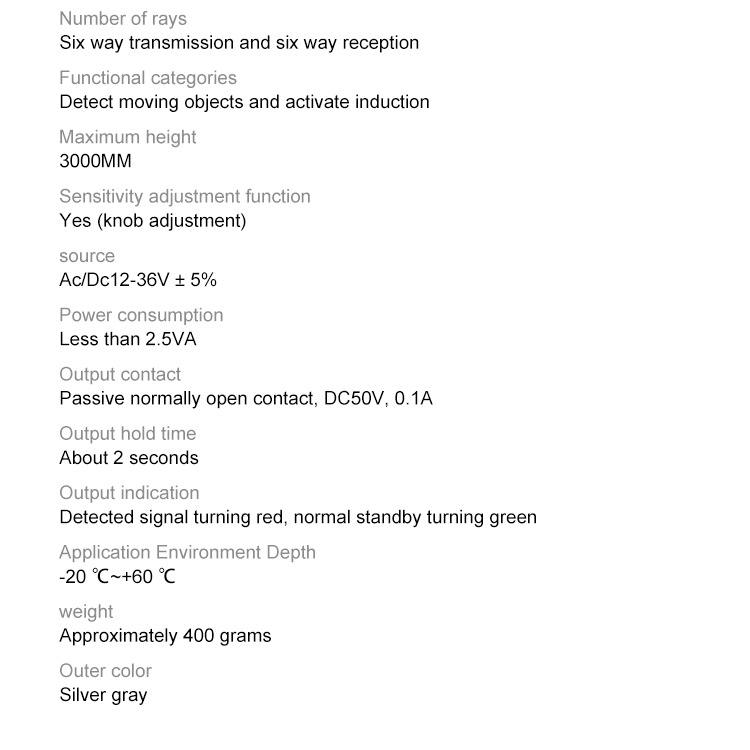

| Light category | Reflective infrared |
| number of rays | Six channels of transmitting, six channels of receiving |
| Functional category | Detect moving objects, induction activation |

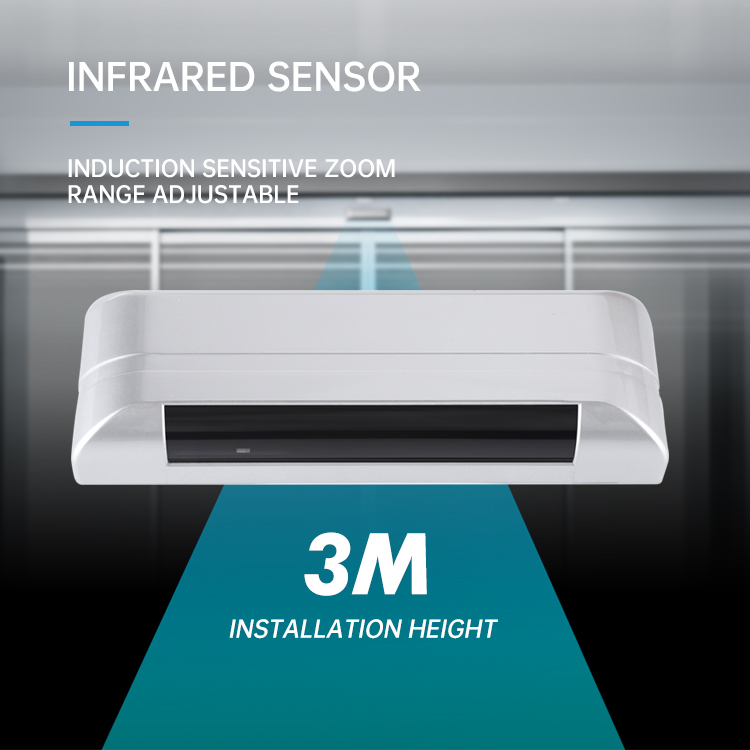

| maximum height | 3000MM |
| Sensitivity adjustment function | Yes (knob adjustment) |

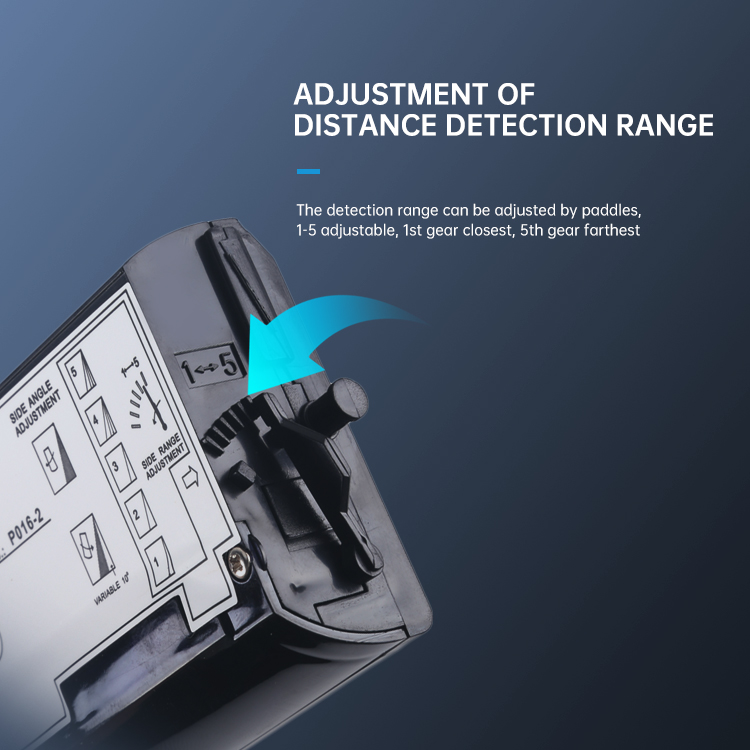

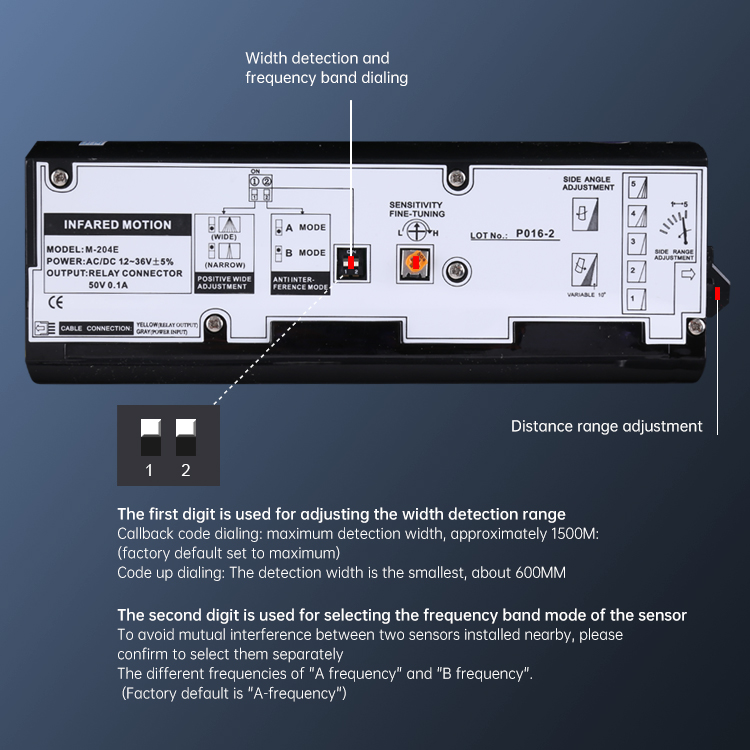

| Effective detection range adjustment | The adjustment angle of the main body is 0°∞10°. The inclination of the main body is adjusted. The detection distance can be adjusted. The detection width is set by the DIP switch. |
| power supply | Ac/Dc12-36V±5% |
| Power consumption | Less than 2.5VA |
| Output contact | Passive normally open contact, DC50V, 0.1A |
| Output hold time | about 2 seconds |
| Output instructions | When the signal is detected, it turns red, and when in normal standby, it turns green. |
| Application environment depth | 20°Cc+60°C |
| weight | About 400 grams |
| outer color | silver gray |

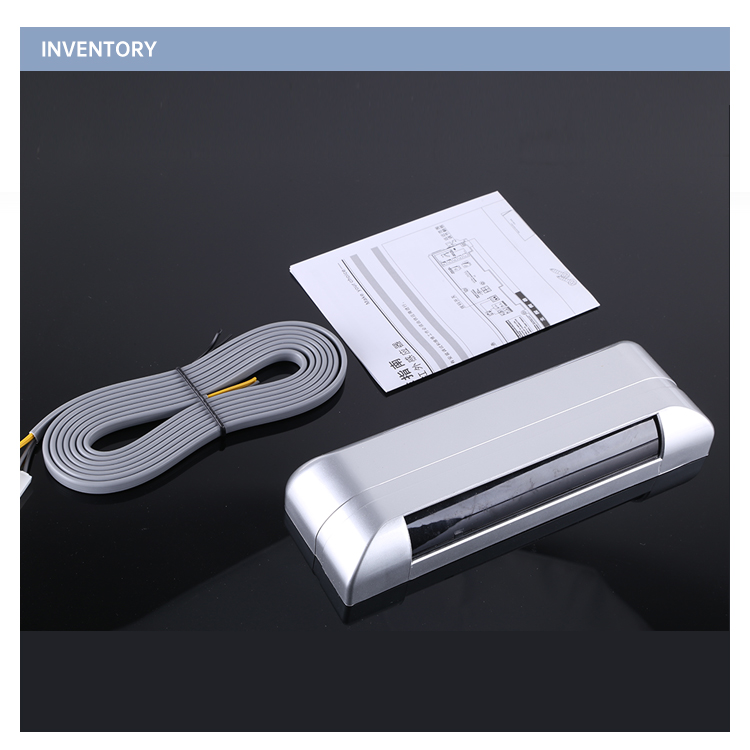

| appendix | 2.5m flexible cable, 2 installation screws, installation paper, installation and operation manual |
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 15 years and is designed to withstand heavy use in industrial environments.There are 1 million life test experiments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 20 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 30 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including [CE certifications and ISO 9001standards,FCC].
