218D
CUMU
24 Months
Worldwide by sea or by express
One million lifespan
3~15 Days In stock

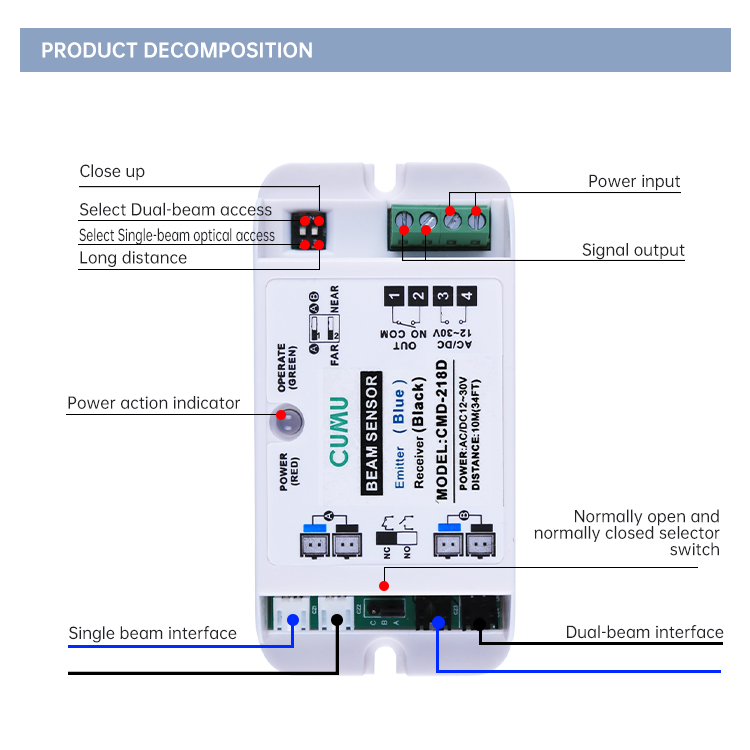

| Power supply: AC/DC12-30V |
| Quiescent current: 18mA |
| Action current: 58mA |
| Maximum sending and receiving distance: 10 meters |
| Output contact normally open and normally closed: jump selection |
| External wiring emission line: (blue) 5.5 meters |
| Accepting line: (black) 5.5 meters |

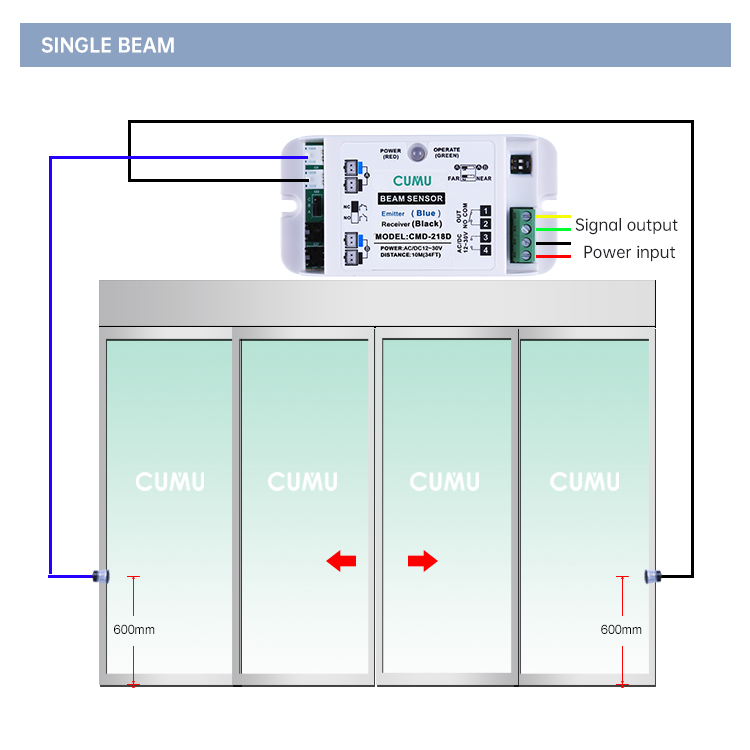

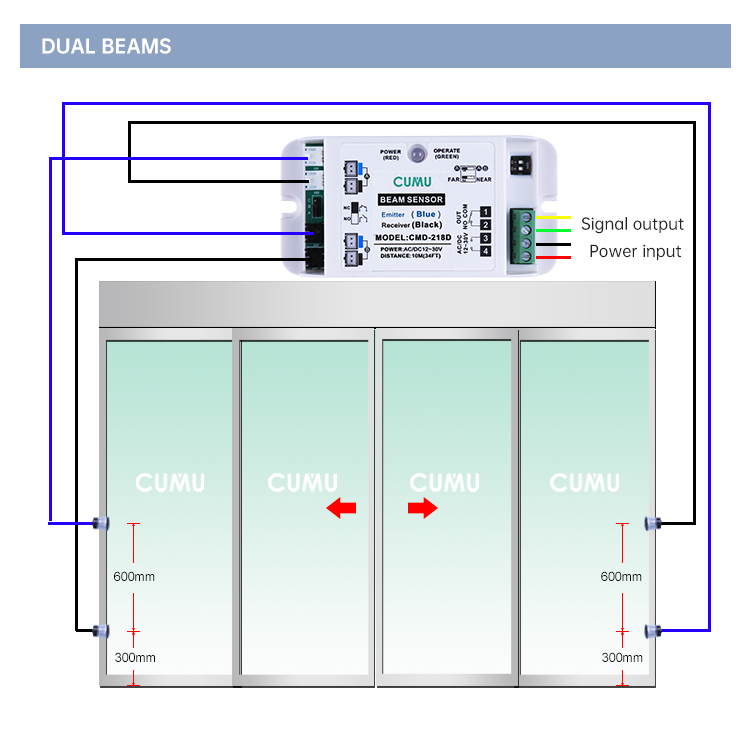

| Number of beams: single beam or double beam optional |
| Working environment temperature: -42°C-45°C |
| Working environment humidity: 10-90%RH |
| Appearance size (main controller): 105.5L*53.4W*28.5Hmm |
| Appearance size (electric eye head): 19L*13Dmm |

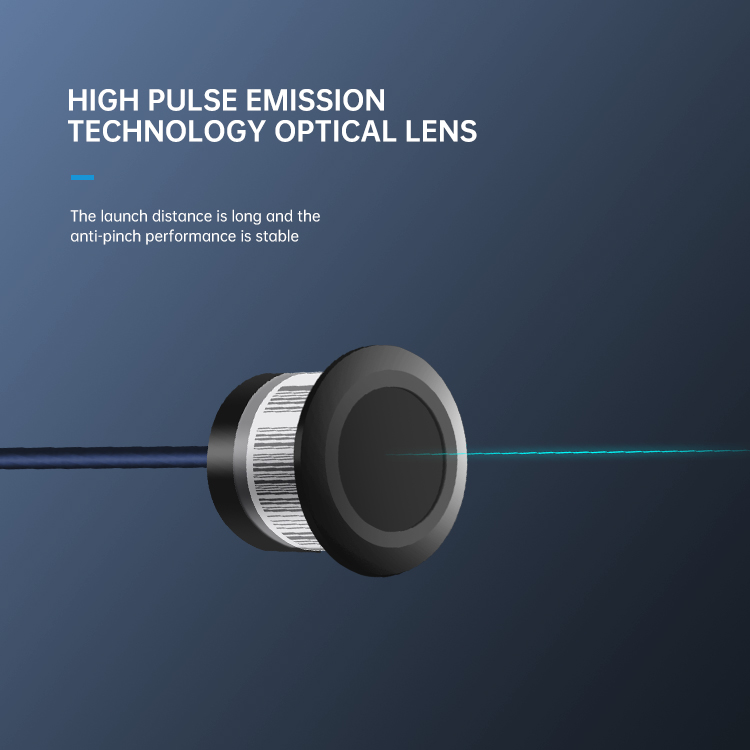

1. High pulse emission technology optical lens
Long launch distance and stable anti-pinch performance

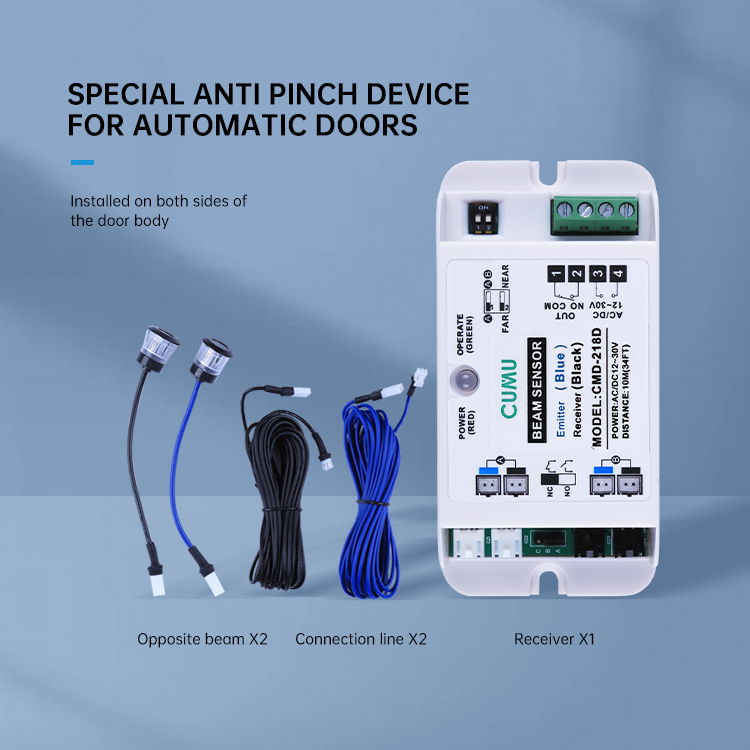

2. Anti-pinch device for automatic doors
The transmitter head adopts low-power consumption and high-pulse mid-transmission technology, and the transmitter has a long transmission distance and a long lens life. The international universal optical lens design has good focusing, reasonable control angle, and easy installation and shooting.
3.ABS fireproof material production
Safer to use, heat-resistant and flame-retardant ABS material, fire-proof and flame-retardant, high protection level, longer service life
4.Microcomputer control
The host adopts microcomputer control technology, with good system integration and good stability.
5. Stable receiving system
Imported receiving filtering, decoding, and amplification systems are used to effectively solve the problem of anti-natural light interference, with strong anti-interference ability and more stable movement.
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 15 years and is designed to withstand heavy use in industrial environments.There are 1 million life test experiments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 20 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 30 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including [CE certifications and ISO 9001standards,FCC].
