CMD-254
CUMU
24 Months
Worldwide by sea or by express
One million lifespan
3~15 Days In stock

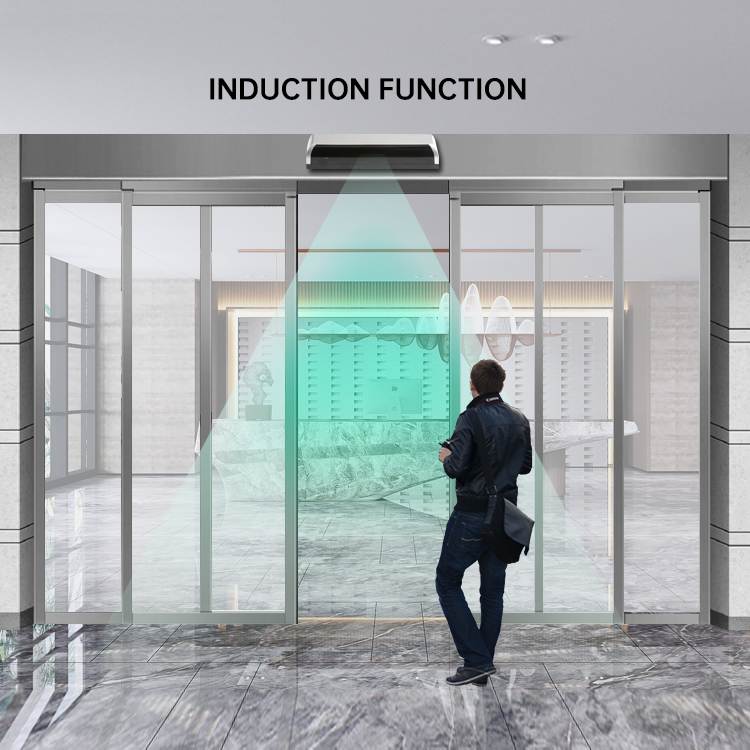

1. Special for automatic door unit

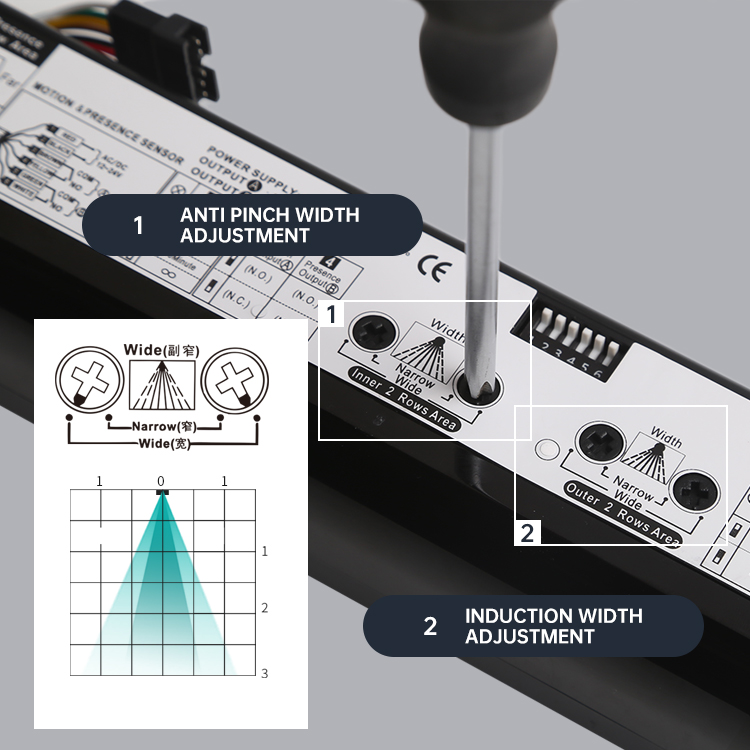

Sensitivity and zoom range are adjustable

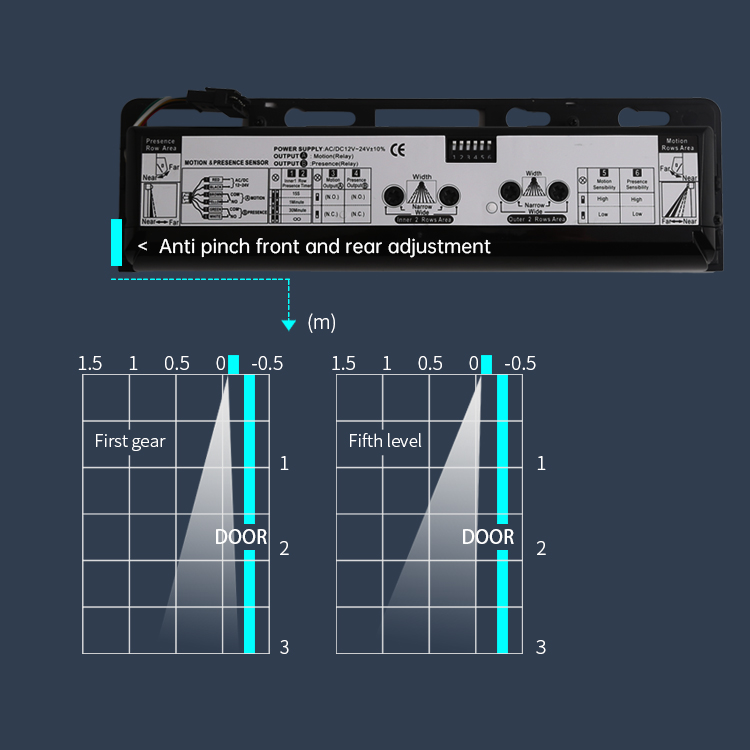

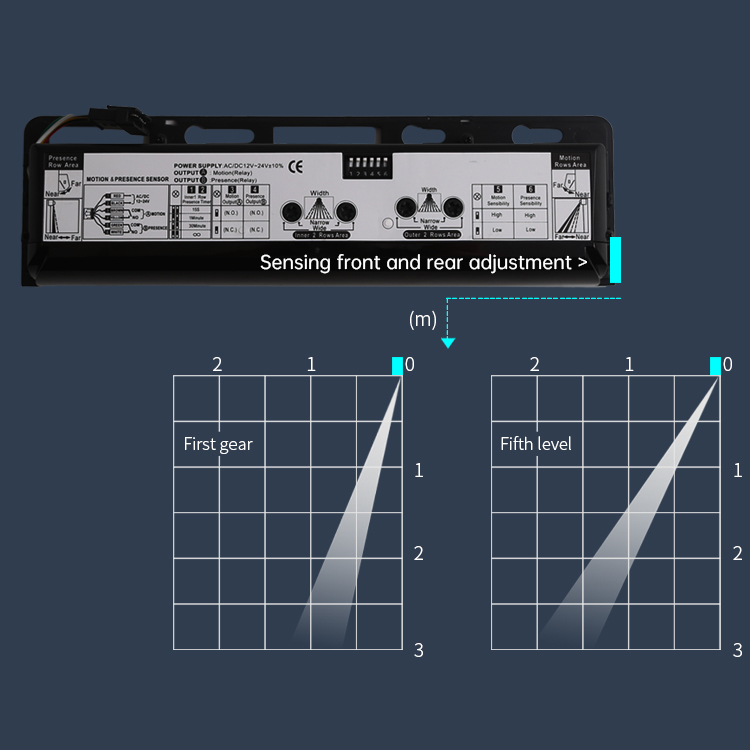

2. Far and near detection range adjustment
The distance of the detection range can be adjusted by using the paddle.
1-5 gears are adjustable, 1st gear is the closest, 5th gear is the farthest

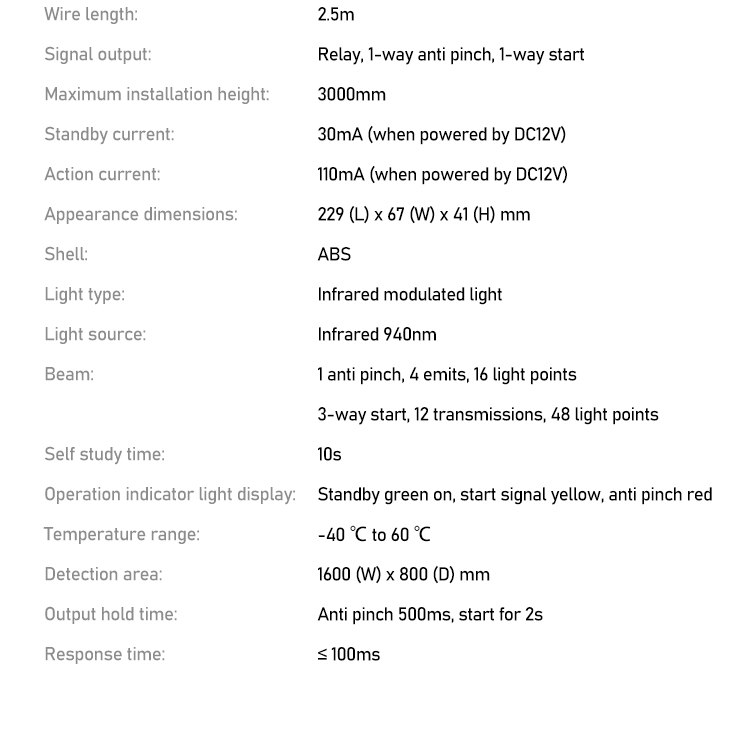

Parameter information：
Input power: AC/DC12624V(-/+10%)
Wire length: 2.5m

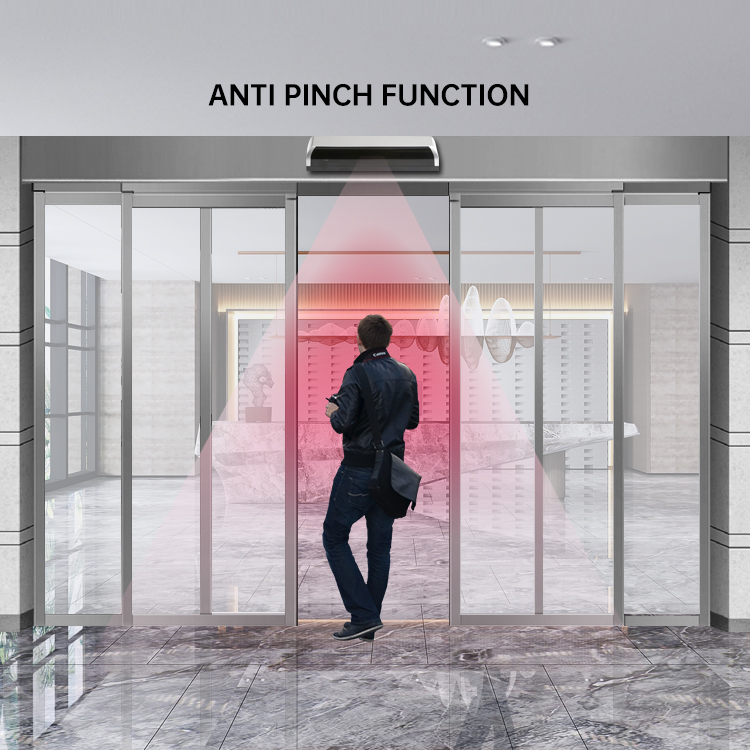

Signal output: relay, 1 anti-pinch, 1 start

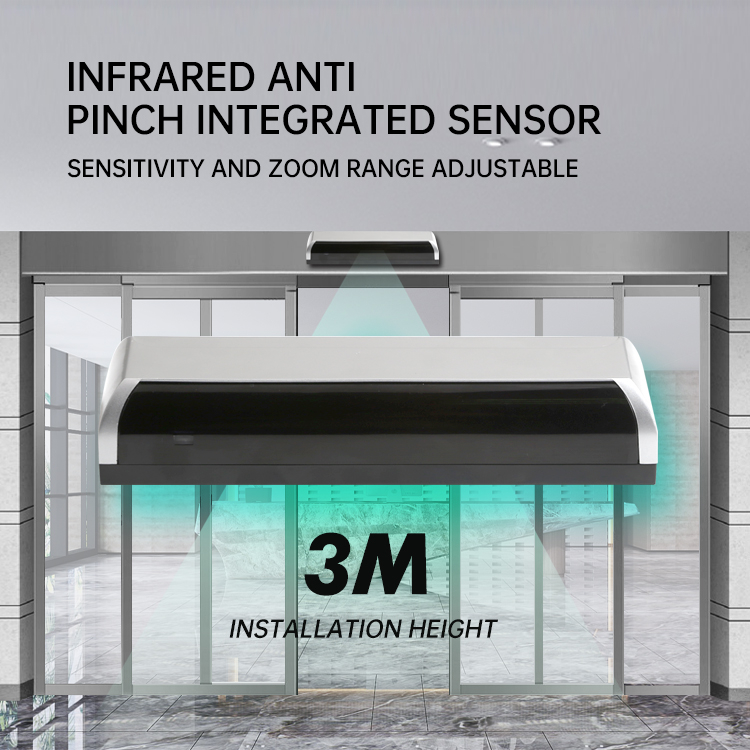

Maximum installation height: 3000mm
Standby current: 30mA (when powered by DC12V)
Action current: 110mA (when powered by DC12V)

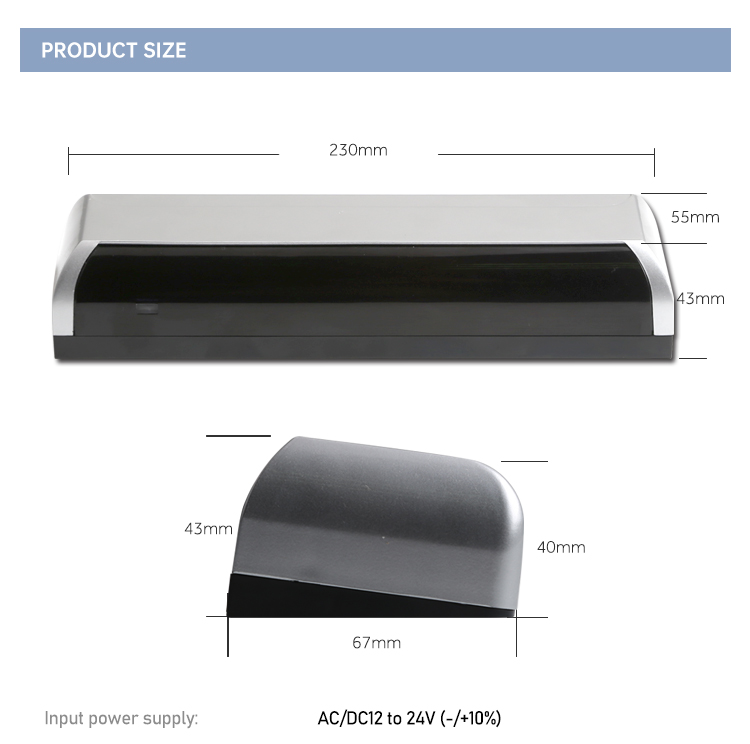

Appearance size: 229(L)x67(W)x41(H)mm

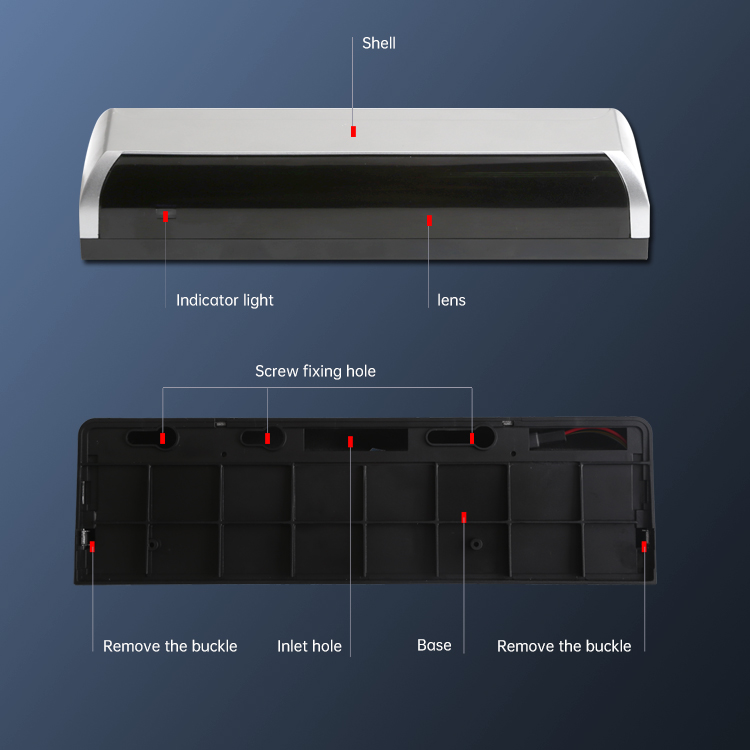

Shell:ABS
Light type: infrared modulated light
Light source: infrared 940nm
Beam: 1 anti-pinch, 4 emission, 16 light points, 3 start, 12 emission, 48 light points
Self-learning time:10s
Operation indicator light display: green on standby, yellow on start signal, red on anti-pinch
Temperature range: 40°C to 60°C
Detection area:1600(W)x800(D)mm
Output holding time: anti-pinch 500ms, start-up 2s
Response time:<100ms
We believe that Infrared Anti-Pinch Integrated Induction Sensor offers an unbeatable combination of quality, performance, and value. If you have any questions about this product or would like to learn more about how it can benefit your business, please don't hesitate to contact us. We are dedicated to providing excellent customer service and helping our customers achieve their business goals.
Thank you for considering Infrared Anti-Pinch Integrated Induction Sensor . We look forward to the opportunity to work with you and help you achieve success.
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 15 years and is designed to withstand heavy use in industrial environments.There are 1 million life test experiments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 20 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 30 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including [CE certifications and ISO 9001standards,FCC].
