CMD-236E
CUMU
24 Months
Worldwide by sea or by express
One million lifespan
3~15 Days In stock

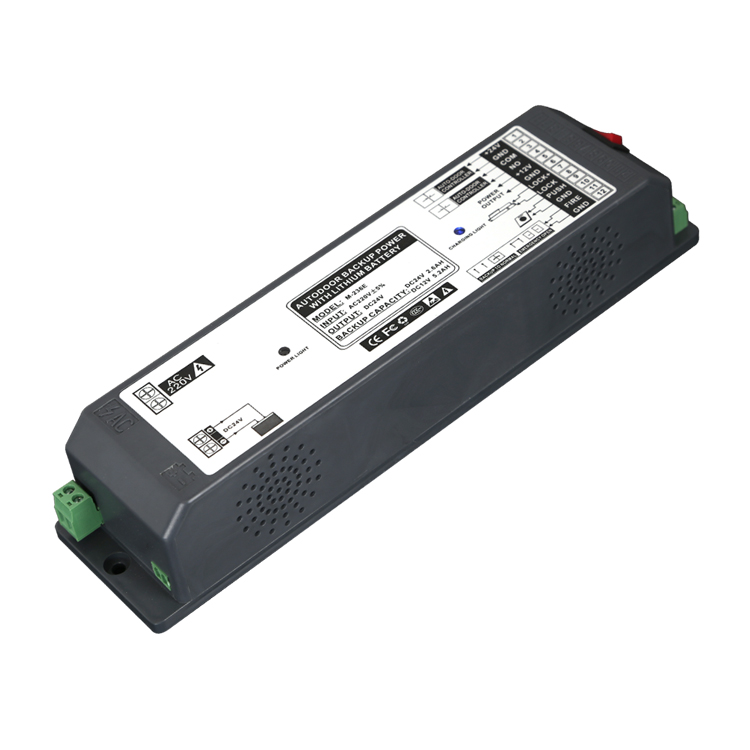

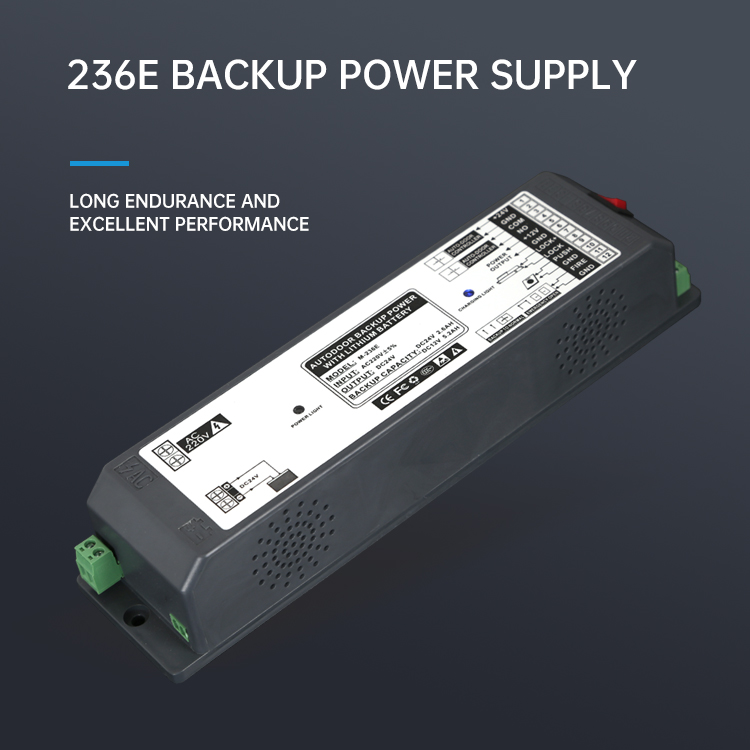

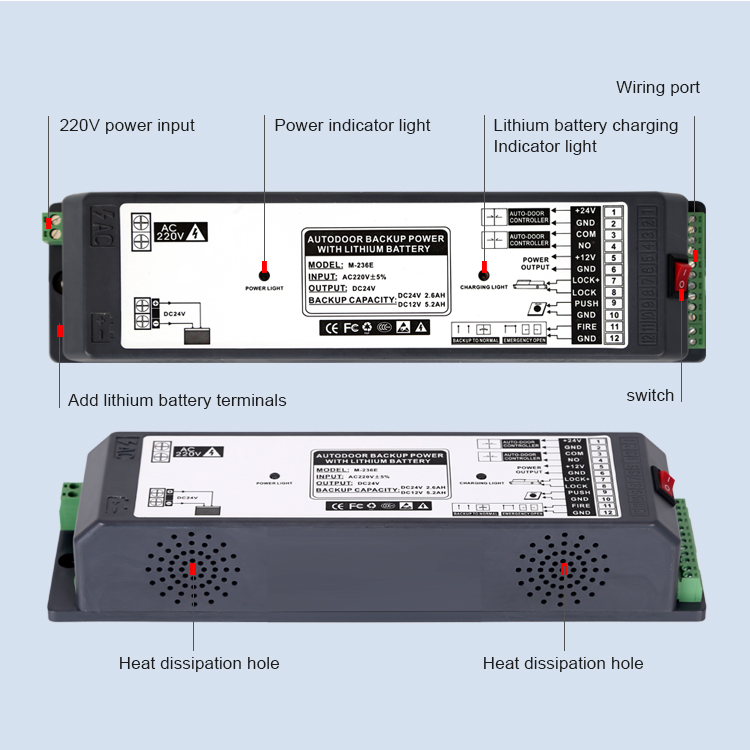

24V automatic door backup power supply is a backup power supply device used for automatic door systems. It is usually used to provide continuous power supply to the automatic door system when the main power fails to ensure the normal operation of the door. The product typically includes a charger, battery and necessary electrical connections to automatically switch to backup power when needed. This backup power equipment is typically designed to be compact, reliable, and easy to install to meet the ongoing operational needs of automatic door systems.
1. Say goodbye to the trouble caused by power outages. It can be used to power automatic doors or as access control power supply.

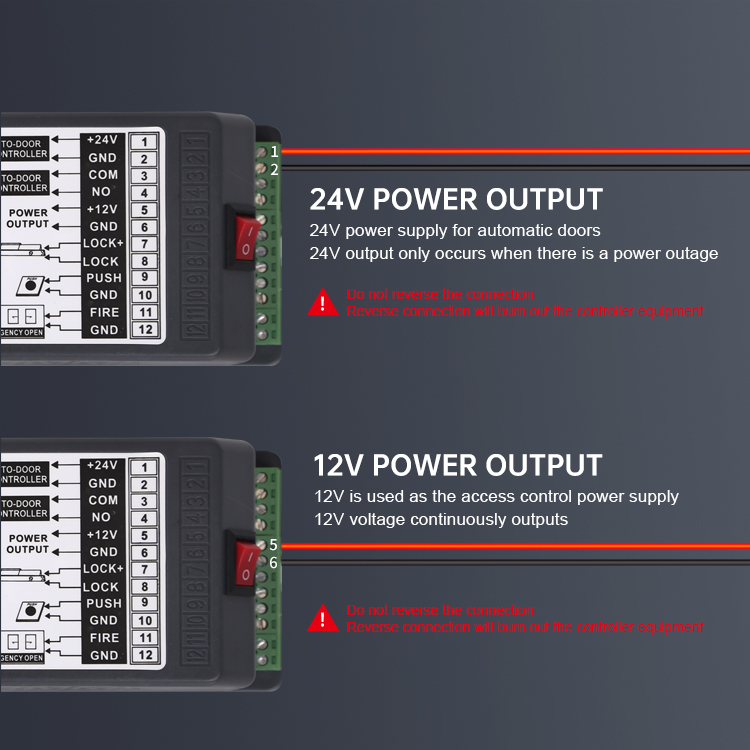

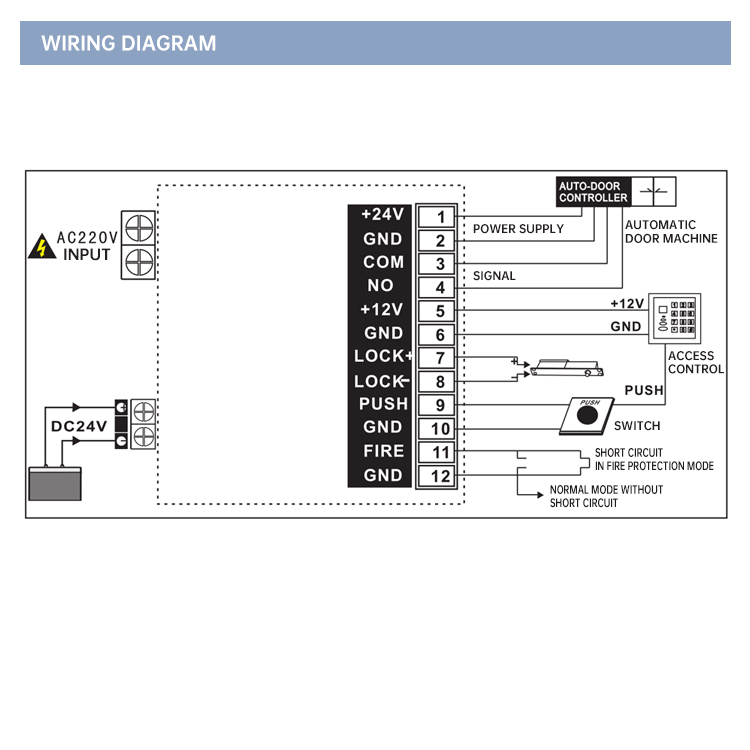

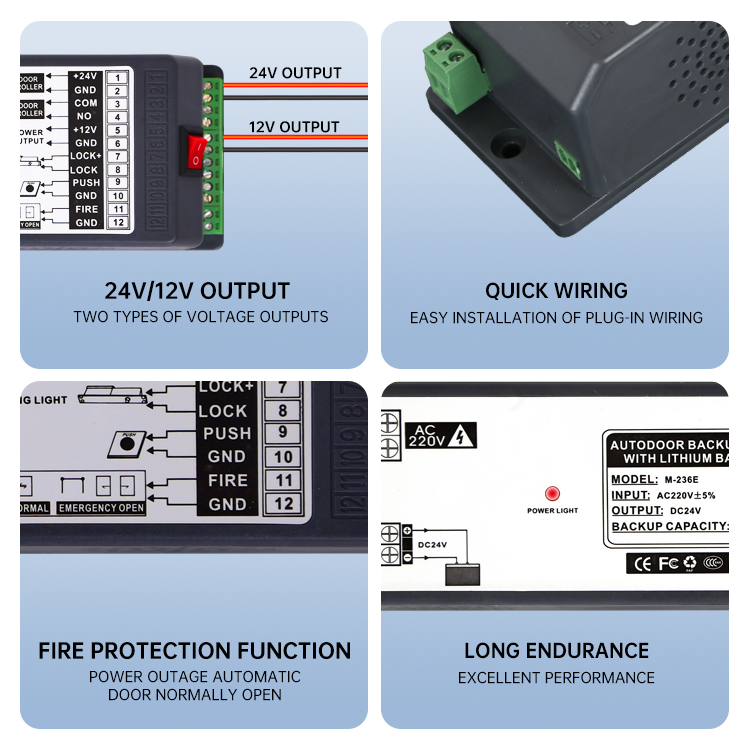

2. Two voltage outputs of 24V and 12V are equipped with fire protection function. The automatic door is always open when the power is off. The wiring is fast. The plug-in wiring is easy to install. The battery life is long-lasting and the battery life is long after the power is turned off.

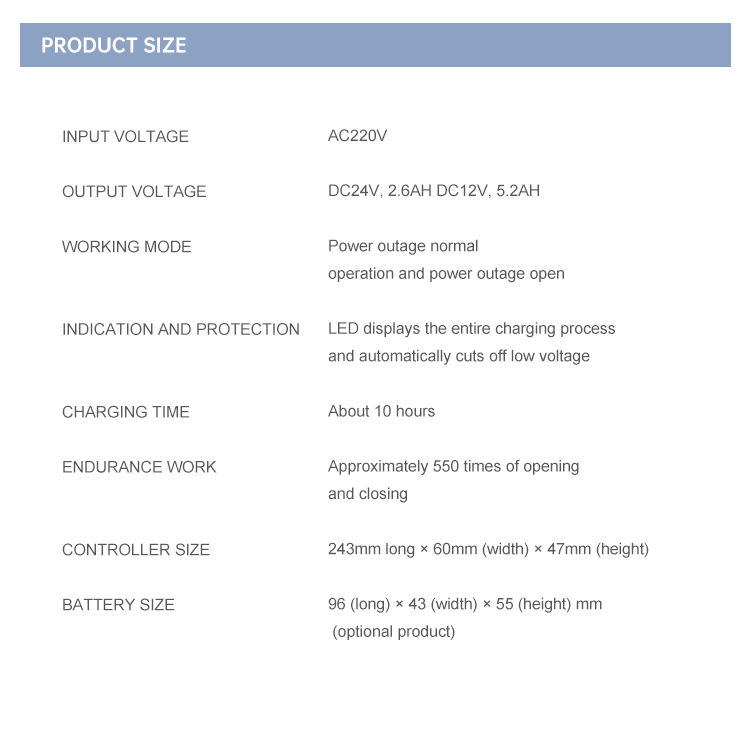

| Name | automatic door backup power supply |
| Voltage | AC220V |
| The output voltage | DC24V,2.6AH DC12V,5.2AH |

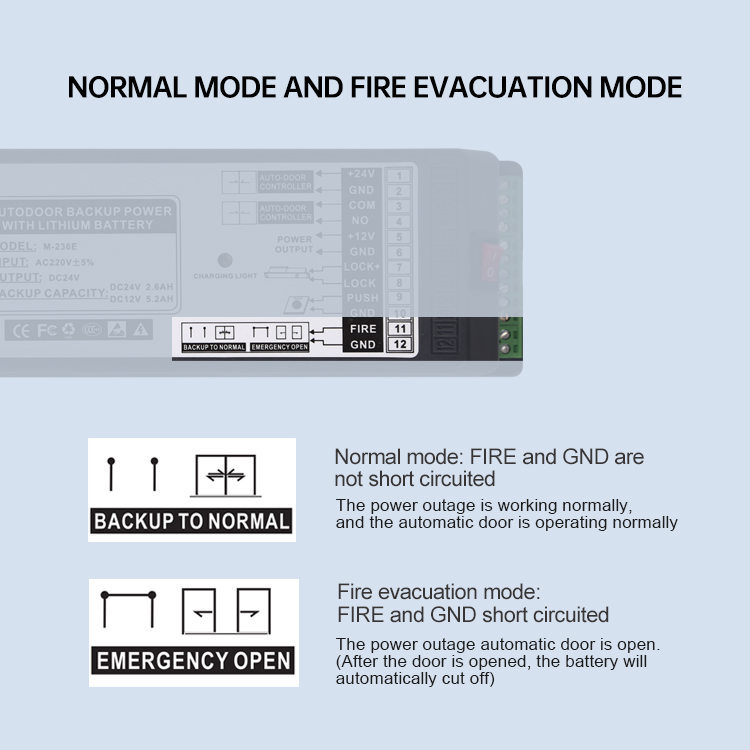

| Operating mode | Normal operation during power outage and open during power outage |
| instructions and protection | LED displays the charging process throughout the entire process, and automatically cuts off at low voltage. |
| Battery life | Approximately 550 opening and closing times |

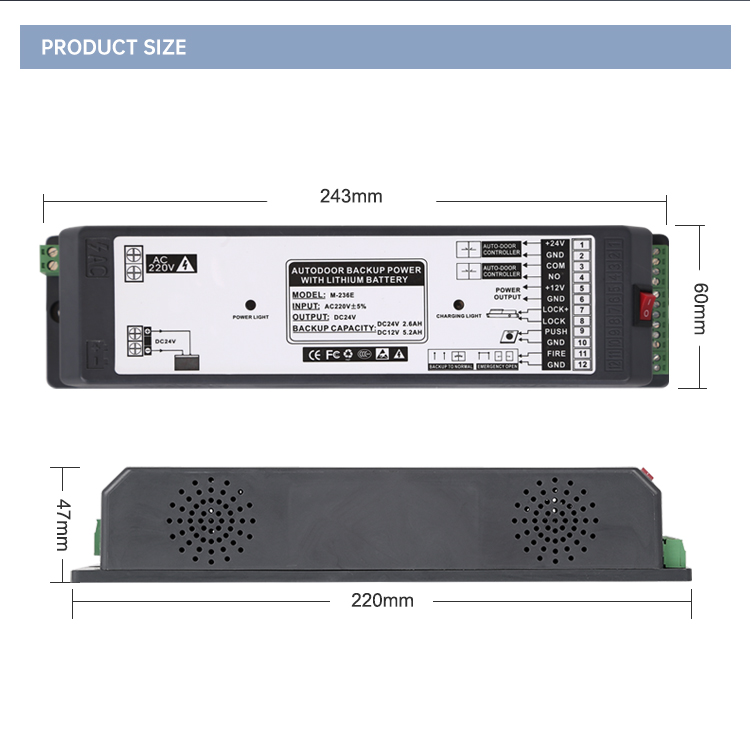

| Controller size | 243mm(length)X60mm(width)X47mm(height) |
| Battery size | 96(length)X43(width)X55(height)mm(optional product) |
